LM2433 Datasheet, Driver, National Semiconductor

LM2433 Features

  • Driver n n n n n 16 MHz bandwith at 110VPP output swing 0V to 4V input range Greater than 110VPP output swing capability IK Current Output (pin 5) for IK feedback systems Emitter (pin 6) acces

PDF File Details

Part number:

LM2433

Manufacturer:

National Semiconductor

File Size:

940.74kb

Download:

📄 Datasheet

Description:

Monolithic single channel 16 mhz edtv crt driver. The LM2433 is a single channel high voltage CRT driver circuit designed for use in Rear-Projection and Direct-View EDTV applications.

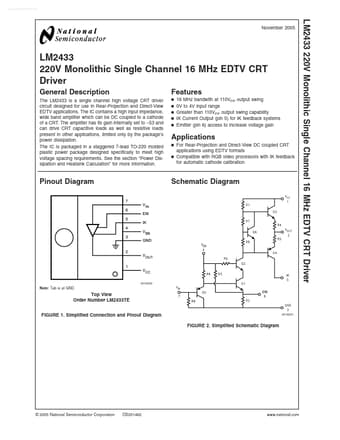

Datasheet Preview: LM2433 📥 Download PDF (940.74kb)
Page 2 of LM2433 Page 3 of LM2433

LM2433 Application

  • Applications The IC contains a high input impedance, wide band amplifier which can be DC coupled to a cathode of a CRT. The amplifier has its gain
