LM2793

Low Noise White LED Driver

LM2793 Features

* n Two Regulated Current Outputs, up to 16mA Each, Matched to Within ± 0.3% (typ.) n High Efficiency, 1.5x Regulated Charge Pump n Input Voltage Range: 2.7V to 5.5V n Soft Start Limits Inrush Current n Analog Voltage Brightness Control n PWM Brightness Control n Very Small Solution Size - NO INDUCTOR

LM2793 General Description

The LM2793 is a highly efficient, semi-regulated 1.5x CMOS charge pump that provides dual constant current outputs. The LM2793 has an input voltage range of 2.7V to 5.5V. To control LED brightness, the amount of current driven to the current-mode outputs can be adjusted with an analog voltage and/or.

LM2793 Datasheet (211.78 KB)

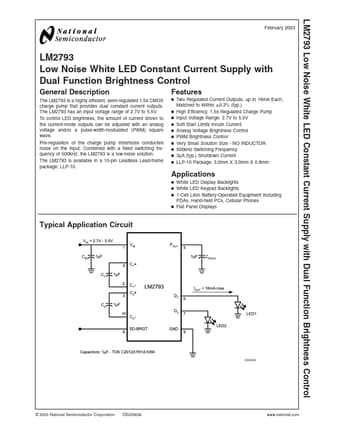

Preview of LM2793 PDF

Datasheet Details

Part number:

LM2793

Manufacturer:

National Semiconductor

File Size:

211.78 KB

Description:

Low noise white led driver.
LM2793 Low Noise White LED Constant Current Supply with Dual Function Brightness Control February 2003 LM2793 Low Noise White LED Constant Current S.
