LM2796, Dual-Display White LED Driver

LM2796 Dual-Display White LED Driver with 3/2x Switched Capacitor Boost February 2004 LM2796 Dual-Display White LED Driver with 3/2x Switched Capaci.
The LM2796 is a charge-pump based white-LED driver that is ideal for mobile phone display backlighting.

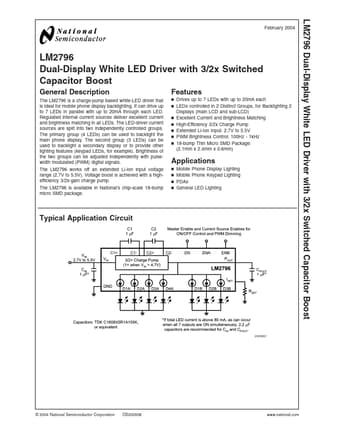

datasheet Preview Page 1 from Datasheet4u.com

LM2796_NationalSemiconductor.pdf

LM2796 Datasheet Preview — Preview of LM2796 PDF

Datasheet Details

Part number:

LM2796

Manufacturer:

National Semiconductor

File Size:

172.18 KB

Description:

Dual-Display White LED Driver

Features

* (keypad LEDs, for example). Brightness of the two groups can be adjusted independently with pulsewidth modulated (PWM) digital signals. The LM2796 works off an extended Li-Ion input voltage range (2.7V to 5.5V). Voltage boost is achieved with a highefficiency 3/2x-gain charge pump. The LM2796 is ava

Applications

* n n n n Mobile Phone Display Lighting Mobile Phone Keypad Lighting PDAs General LED Lighting Typical Application Circuit 20093801 © 2004 National Semiconductor Corporation DS200938 www. national. com LM2796 Connection Diagram 18-Bump Thin Micro SMD Package, Large Bump NS Package Number TLA18 2
