LM27966 Datasheet - Texas Instruments

LM27966, White LED Driver

LM27966 www.ti.com SNVS448B * JULY 2006 * REVISED MAY 2013 LM27966 White LED Driver with I2C Compatible Interface Check for Samples.
The LM27966 is a highly integrated charge-pumpbased display LED driver.

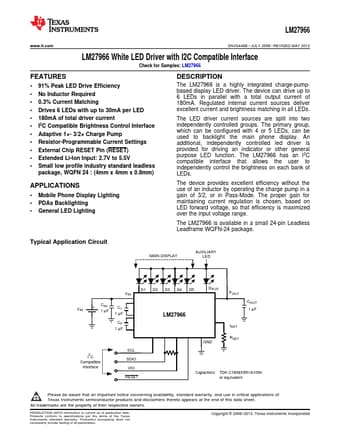

datasheet Preview Page 1 from Datasheet4u.com

LM27966-etcTI.pdf

LM27966 Datasheet Preview — Preview of LM27966 PDF

Datasheet Details

Part number:

LM27966

Manufacturer:

Texas Instruments ↗

File Size:

1.17 MB

Description:

White LED Driver

Features

* 1
* 2 91% Peak LED Drive Efficiency
* No Inductor Required
* 0.3% Current Matching
* Drives 6 LEDs with up to 30mA per LED
* 180mA of total driver current
* I2C Compatible Brightness Control Interface
* Adaptive 1×- 3/2× Charge Pump
* Re

Applications

* Mobile Phone Display Lighting
* PDAs Backlighting
