LM2795, LM2794 Datasheet - Texas Instruments

LM2795, LM2794, Current Regulated Switched Capacitor LED Supply

LM2794, LM2795 www.ti.com SNVS168L * JANUARY 2002 * REVISED MAY 2013 LM2794 /LM2795 Current Regulated Switched Capacitor LED Supply.
The LM2794/95 is a fractional CMOS charge-pump that provides four regulated current sources.

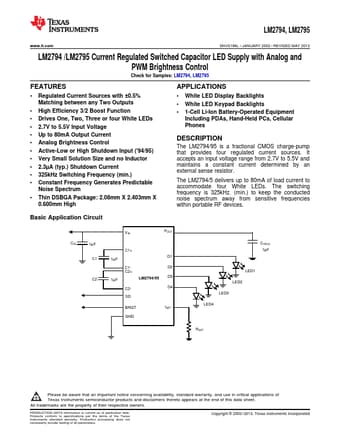

datasheet Preview Page 1 from Datasheet4u.com

LM2794-etcTI.pdf

LM2795 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM2795, LM2794. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LM2795, LM2794

Manufacturer:

Texas Instruments ↗

File Size:

1.11 MB

Description:

Current Regulated Switched Capacitor LED Supply

Note:

This datasheet PDF includes multiple part numbers: LM2795, LM2794.
Please refer to the document for exact specifications by model.

Features

* 1
* 2 Regulated Current Sources with ±0.5% Matching between any Two Outputs
* High Efficiency 3/2 Boost Function
* Drives One, Two, Three or four White LEDs
* 2.7V to 5.5V Input Voltage
* Up to 80mA Output Current
* Analog Brightness Control
* A

Applications

* White LED Display Backlights
* White LED Keypad Backlights
