LM335

Precision Temperature Sensors

LM335 Features

* n n n n n n n n Directly calibrated in ˚Kelvin 1˚C initial accuracy available Operates from 400 µA to 5 mA Less than 1Ω dynamic impedance Easily calibrated Wide operating temperature range 200˚C overrange Low cost Schematic Diagram DS005698-1 © 1999 National Semiconductor Corporation DS005698 w

LM335 General Description

The LM135 series are precision, easily-calibrated, integrated circuit temperature sensors. Operating as a 2-terminal zener, the LM135 has a breakdown voltage directly proportional to absolute temperature at +10 mV/˚K. With less than 1Ω dynamic impedance the device operates over a current range of 40.

LM335 Datasheet (287.78 KB)

Preview of LM335 PDF

Datasheet Details

Part number:

LM335

Manufacturer:

National Semiconductor

File Size:

287.78 KB

Description:

Precision temperature sensors.

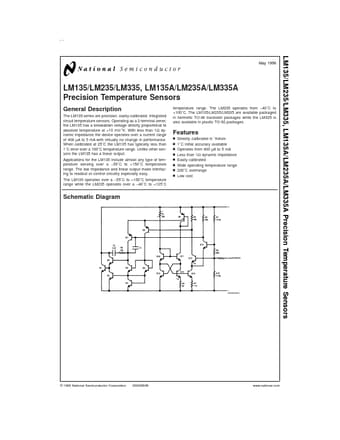

LM135/LM235/LM335, LM135A/LM235A/LM335A Precision Temperature Sensors May 1999 LM135/LM235/LM335, LM135A/LM235A/LM335A Precision Temperature Sensors.
