LM3350

Switched Capacitor Voltage Converter

National Semiconductor

LM3350 Features

* n Conversion of 3.3V to 5V, or 5V to 3.3V n Small Mini SO-8 package n No inductor required Applications n n n n Any mixed 5V and 3.3V system Laptop computers and PDAs Handheld instrumentation PCMCIA cards Key Specifications n 800 kHz switch frequency allows use of very small, inexpensive capacitor

LM3350 General Description

The LM3350 is a CMOS charge-pump voltage converter which efficiently provides a 3.3V to 5V step-up, or 5V to 3.3V step-down. The LM3350 uses four small, low cost capacitors to provide the voltage conversion. It eliminates the cost, size and radiated EMI related to inductor based circuits, or the pow.

LM3350 Datasheet (243.33 KB)

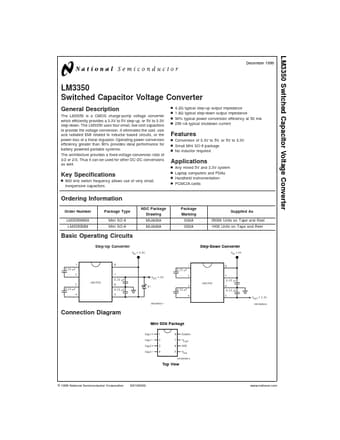

LM3350 Datasheet Preview — Preview of LM3350 PDF

Datasheet Details

Part number:

LM3350

Manufacturer:

National Semiconductor

File Size:

243.33 KB

Description:

Switched capacitor voltage converter.
