LM3411

Precision Secondary Regulator/Driver

LM3411 Features

* n Fixed voltages of 3.3V and 5.0V with initial tolerance of ± 1% for standard grade and ± 0.5% for A grade n Custom voltages available (3V

* 17V) n Wide output current range, 20 µA

* 15 mA n Low temperature coefficient n Available in 5-lead SOT23-5 surface mount package (tape and reel)

LM3411 General Description

The LM3411 is a low power fixed-voltage (3.3V or 5.0V) precision shunt regulator designed specifically for driving an optoisolator to provide feedback isolation in a switching regulator. The LM3411 circuitry includes an internally compensated op amp, a bandgap reference, NPN output transistor, and v.

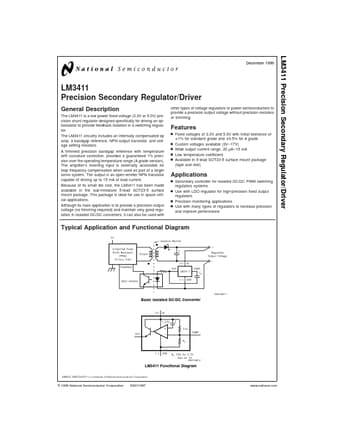

LM3411 Datasheet (350.77 KB)

Preview of LM3411 PDF

Datasheet Details

Part number:

LM3411

Manufacturer:

National Semiconductor

File Size:

350.77 KB

Description:

Precision secondary regulator/driver.
