LM3414

60-W Common Anode-Capable Constant Current Buck LED Driver

LM3414 Features

* 1 Supports LED Power up to 60 W (1): 18x 3-W HBLEDs

* Requires No External Current Sensing Resistor

* ±3% LED Current Accuracy

* Up to 96% Efficiency

* High Contrast Ratio (Minimum Dimming Current Pulse Width

LM3414 General Description

The LM3414 and LM3414HV are 1-A 60-W(1) common anode-capable constant current buck LED drivers. They are suitable for driving single string of 3W HBLED with up to 96% efficiency. They accept input voltages from 4.5 VDC to 65 VDC and deliver up to 1-A average LED current with ±3% accuracy. The integr.

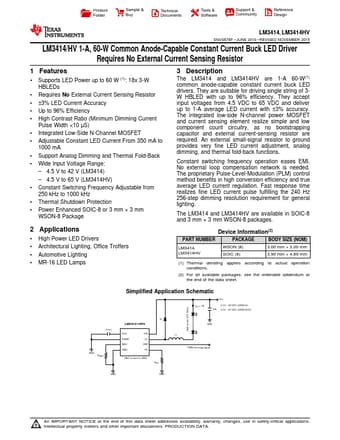

LM3414 Datasheet (1.76 MB)

Preview of LM3414 PDF

Datasheet Details

Part number:

LM3414

Manufacturer:

Texas Instruments ↗

File Size:

1.76 MB

Description:

60-w common anode-capable constant current buck led driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design LM3414, LM3414HV SNVS678F

* JUNE 2.
