LM3410

Constant-Current Boost and SEPIC LED Driver

LM3410 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Test Guidance With the Following:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C6

LM3410 General Description

The LM3410 and LM3410-Q1 constant current LED driver are a monolithic, high frequency, PWM DC-DC converter, available in 6-pin WSON, 8-pin MSOPPowerPad™, and 5-pin SOT-23 packages. With a minimum of external components the LM3410 and LM3410-Q1 are easy to use. It can drive 2.8-A (typical) peak curre.

LM3410 Datasheet (1.80 MB)

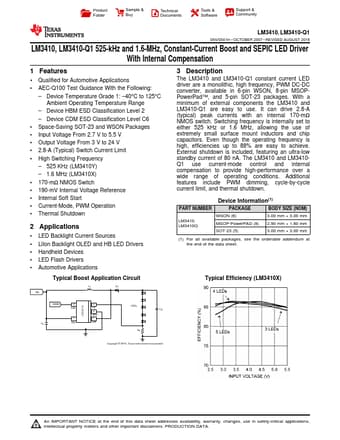

Preview of LM3410 PDF

Datasheet Details

Part number:

LM3410

Manufacturer:

Texas Instruments ↗

File Size:

1.80 MB

Description:

Constant-current boost and sepic led driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM3410, LM3410-Q1 SNVS541H

* OCTOBER 2007

* .
