LM3414HV Datasheet - Texas Instruments

LM3414HV 60-W Common Anode-Capable Constant Current Buck LED Driver

The LM3414 and LM3414HV are 1-A 60-W(1) common anode-capable constant current buck LED drivers. They are suitable for driving single string of 3W HBLED with up to 96% efficiency. They accept input voltages from 4.5 VDC to 65 VDC and deliver up to 1-A average LED current with ±3% accuracy. The integr.

LM3414HV Features

* 1 Supports LED Power up to 60 W (1): 18x 3-W HBLEDs

* Requires No External Current Sensing Resistor

* ±3% LED Current Accuracy

* Up to 96% Efficiency

* High Contrast Ratio (Minimum Dimming Current Pulse Width

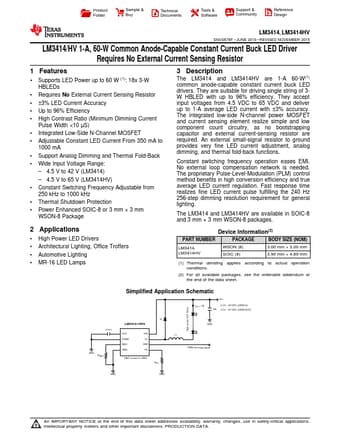

LM3414HV Datasheet (1.76 MB)

Preview of LM3414HV PDF

Datasheet Details

Part number:

LM3414HV

Manufacturer:

Texas Instruments ↗

File Size:

1.76 MB

Description:

60-w common anode-capable constant current buck led driver.
