LM71

SPI/MICROWIRE 13-Bit Plus Sign Temperature Sensor

LM71 Features

* n SOT23-5 or No-Pull-Back LLP-6 Packages n Operates over a full

* 40˚C to +150˚C range n SPI and MICROWIRE Bus interface Key Specifications j Supply Voltage j Supply Current j Temperature 2.65V to 5.5V operating 300 µA (typ) 550 µA (max) Applications n n n n n System Thermal Management Per

LM71 General Description

The LM71 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT23 or the 6-pin LLP (no pull back) package. The host can query the LM71 at any time to read temperature. Its low operating current is useful in systems where .

LM71 Datasheet (249.87 KB)

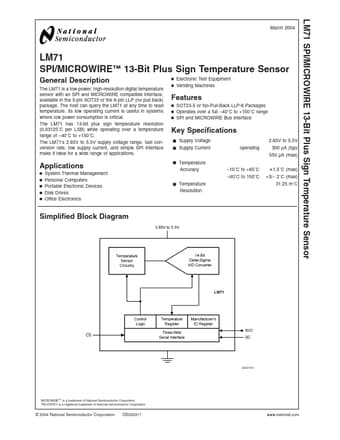

Preview of LM71 PDF

Datasheet Details

Part number:

LM71

Manufacturer:

National Semiconductor

File Size:

249.87 KB

Description:

Spi/microwire 13-bit plus sign temperature sensor.
