LM7171QML - Voltage Feedback Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	LM7171QML
Manufacturer	Texas Instruments
File Size	1.22 MB
Description	Voltage Feedback Amplifier
Datasheet	LM7171QML Datasheet

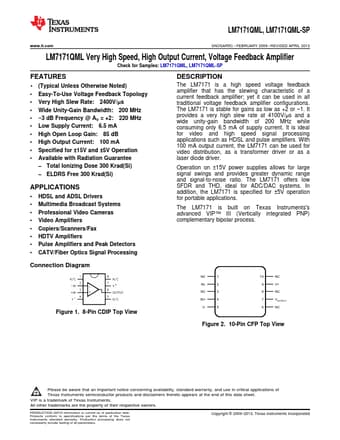

Additional preview pages of the LM7171QML datasheet.

Product details

Description

The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. 1.

Features

1.
23 (Typical Unless Otherwise Noted).
Easy-To-Use Voltage Feedback Topology.
Very High Slew Rate: 2400V/μs.
Wide Unity-Gain Bandwidth: 200 MHz.
3 dB Frequency @ AV = +2: 220 MHz.
Low Supply Current: 6.5 mA.
High Open Loop Gain: 85 dB.
High Output Current: 100 mA.
Specified for ±15V and ±5V Operation.
Available with Radiation Guarantee.
Total Ionizing Dose 300 Krad(Si).
ELDRS Free.
