LM7171 - Very High Speed/ High Output Current/ Voltage Feedback Amplifier

LM7171 Description

LM7171 Very High Speed, High Output Current, Voltage Feedback Amplifier May 1999 LM7171 Very High Speed, High Output Current, Voltage Feedback Ampli.
The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all t.

LM7171 Features

* (Typical Unless Otherwise Noted) Typical Performance Large Signal Pulse Response AV = +2, VS = ± 15V Connection Diagrams 8-Pin DIP/SO DS012385-2 Top View 16-Pin Wide Body SO DS012385-1 DS012385-3 Top View VIP™ is a trademark of National Semiconductor Corporation. © 1999 National Semiconductor

LM7171 Applications

* such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ± 15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171

📥 Download Datasheet

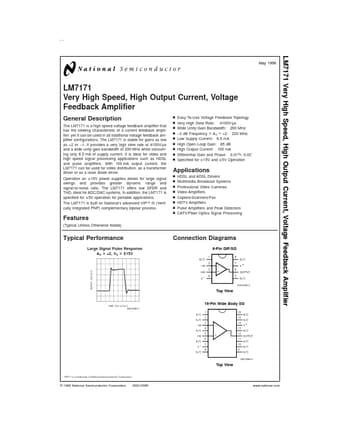

Preview of LM7171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM7171
Manufacturer
National Semiconductor
File Size
615.61 KB
Datasheet
LM7171_NationalSemiconductor.pdf
Description
Very High Speed/ High Output Current/ Voltage Feedback Amplifier
