LM71-Q1, LM71 - SPI/MICROWIRE 13-Bit Plus Sign Temperature Sensor

LM71-Q1 Description

LM71, LM71-Q1 SNIS125E * MARCH 2004 * REVISED AUGUST 2018 LM71/LM71-Q1 SPI/MICROWIRE 13-Bit Plus Sign Temperature Sensor 1 .
The LM71 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT-23 or t.

LM71-Q1 Features

* 1 LM71Q is AEC-Q100 Grade 0 Qualified and is Manufactured on an Automotive Grade Flow
* 5-Pin SOT-23 Package or 6-Pin No-Pull-Back WSON Package
* Operates Over a Full
* 40°C to +150°C Range
* SPI and MICROWIRE Bus Interface
* Key Specifications:

LM71-Q1 Applications

* System Thermal Management
* Personal Computers
* Portable Electronic Devices
* Disk Drives
* Office Electronics
* Electronic Test Equipment
* Vending Machines

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM71-Q1, LM71. Please refer to the document for exact specifications by model.

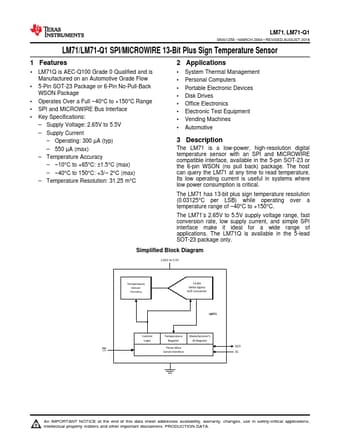

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM71-Q1, LM71
Manufacturer
Texas Instruments ↗
File Size
1.20 MB
Datasheet
LM71-etcTI.pdf
Description
SPI/MICROWIRE 13-Bit Plus Sign Temperature Sensor
Note
This datasheet PDF includes multiple part numbers: LM71-Q1, LM71.
Please refer to the document for exact specifications by model.
