LM7171QML-SP - Voltage Feedback Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	LM7171QML-SP
Manufacturer	Texas Instruments
File Size	1.22 MB
Description	Voltage Feedback Amplifier
Datasheet	LM7171QML-SP Datasheet
Note	This datasheet PDF includes multiple part numbers: LM7171QML-SP, LM7171QML. Please refer to the document for exact specifications by model.

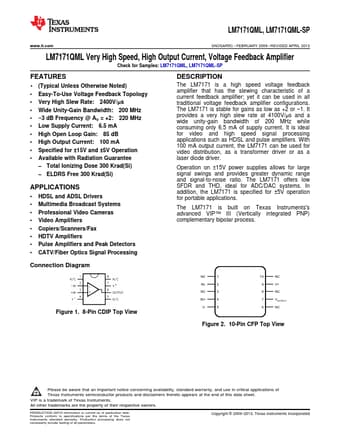

Additional preview pages of the LM7171QML-SP datasheet.

Product details

Description

The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. 1.

Features

1.
23 (Typical Unless Otherwise Noted).
Easy-To-Use Voltage Feedback Topology.
Very High Slew Rate: 2400V/μs.
Wide Unity-Gain Bandwidth: 200 MHz.
3 dB Frequency @ AV = +2: 220 MHz.
Low Supply Current: 6.5 mA.
High Open Loop Gain: 85 dB.
High Output Current: 100 mA.
Specified for ±15V and ±5V Operation.
Available with Radiation Guarantee.
Total Ionizing Dose 300 Krad(Si).
ELDRS Free.
