LM8400

Four Wire Resistive Touchscreen Controller

LM8400 Features

* KEY FEATURES n Supports 4 wire resistive touch panels n Low power standby current typically less than 2 µA at 5.5V n Maximum speed of 500 coordinate pairs per second n Automatic wake up and return to standby n 10 bit A/D n On-chip touch screen current drivers - no external driver required n UART int

LM8400 General Description

The LM8300/8400/8500 is a 4-wire resistive touch screen controller. The controller samples and drives the touch screen without the need of any external hardware. The built in 10-bit A/D provides a maximum of 500 coordinate pairs per second (cpps). The data sampled from the touch screen is sent out o.

LM8400 Datasheet (319.71 KB)

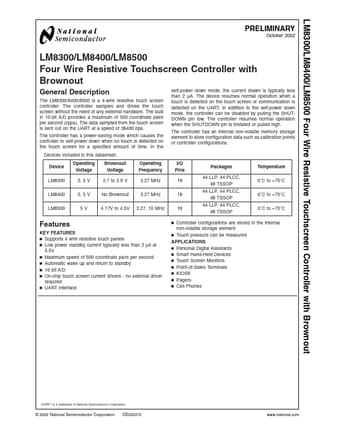

Preview of LM8400 PDF

Datasheet Details

Part number:

LM8400

Manufacturer:

National Semiconductor

File Size:

319.71 KB

Description:

Four wire resistive touchscreen controller.
LM8300/LM8400/LM8500 Four Wire Resistive Touchscreen Controller with Brownout PRELIMINARY October 2002 LM8300/LM8400/LM8500 Four Wire Resistive Touc.
