LM96011

Hardware Monitor

LM96011 Features

* n SensorPath Bus Interface

* 2 hardware programmable addresses n Voltage Monitoring

* 9-bit Σ∆ ADC

* Internal scaling resistors for all inputs

* Monitors Vccp, +2.5 V, +3.3 V, +5 V and +12 V n Temperature Sensing

* Remote diode temperature sensor zone Applica

LM96011 General Description

The LM96011 is part of a hardware monitor system, comprised of two parts the Super I/O (Master) and LM96011 (slave). The LM96011 will be controlled by the Master and report to the master temperature, and voltage measurements using a SensorPath™ single-wire bus. The LM96011 measures the temperature o.

LM96011 Datasheet (110.46 KB)

Preview of LM96011 PDF

Datasheet Details

Part number:

LM96011

Manufacturer:

National Semiconductor

File Size:

110.46 KB

Description:

Hardware monitor.

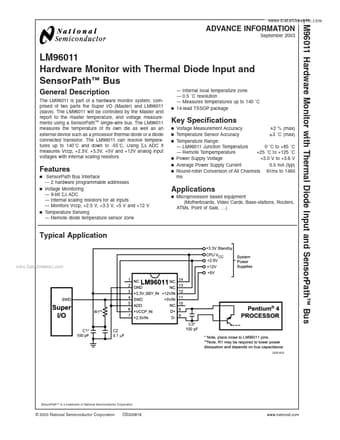

LM96011 Hardware Monitor with Thermal Diode Input and SensorPath™ Bus ADVANCE INFORMATION September 2003 LM96011 Hardware Monitor with Thermal Diode.
