LM9617

Monochrome CMOS Image Sensor

LM9617 Features

* Supplied with micro lenses Video or snapshot operations Progressive scan and interlace read out modes. Programmable pixel clock, inter-frame and inter-line delays. Programmable partial or fu

LM9617 General Description

The LM9617 is a high performance, low power, third inch VGA CMOS Active Pixel Sensor capable of capturing grey-scale digital still or motion images and converting them to a digital data stream. In addition to the active pixel array, an on-chip 12 bit A/D convertor, fixed pattern noise elimination ci.

LM9617 Datasheet (366.35 KB)

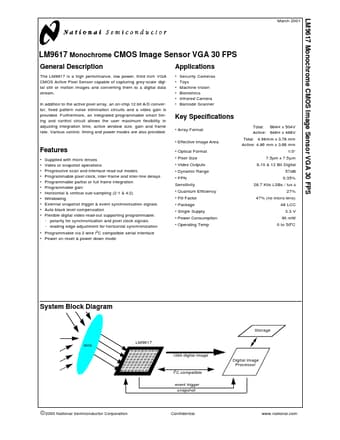

Preview of LM9617 PDF

Datasheet Details

Part number:

LM9617

Manufacturer:

National Semiconductor

File Size:

366.35 KB

Description:

Monochrome cmos image sensor.
