LM96530 - Ultrasound Transmit/Receive Switch

LM96530 Description

LM96530 www.ti.com SNAS499F * AUGUST 2010 * REVISED MAY 2013 LM96530 Ultrasound Transmit/Receive Switch Check for Samples: LM96530 .
The LM96530 is an eight-channel monolithic highvoltage, high-speed T/R (Transmit/Receive) switch for multi-channel medical ultrasound applications.

LM96530 Features

* 1
* 2 8-Channel High-Voltage Receive Side Switches without Charge-Injection
* Can be Used for Receive Protection and/or Receive Multiplexing with SPI™ Compatible Bus Control
* Channel Bandwidth Supports 1MHz to 20MHz Transducers
* Input Accepts Pulses and Continuous-Wa

LM96530 Applications

* It is well-suited for use with Texas Instrument’s LM965XX series chipset which offers a complete medical ultrasound solution targeted towards low-power, portable systems. The LM96530 contains eight high-voltage T/R switches with integrated clamping diodes. This chip protects the inputs of the recei

📥 Download Datasheet

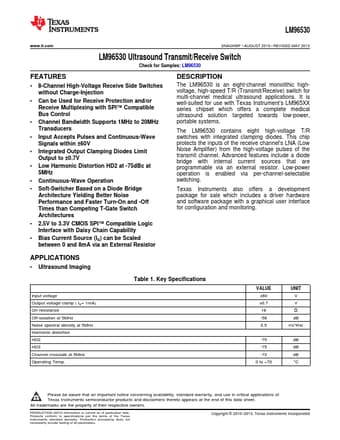

Preview of LM96530 PDF
datasheet Preview Page 2 datasheet Preview Page 3
