LM9618

Monochrome CMOS Image Sensor

LM9618 Features

* f f f f f f f f f f f Video or snapshot operations Progressive scan and interlace read out modes. Programmable pixel clock, inter-frame and inter-line delays. Programmable partial or full frame integration Programmable gain and individual color gain Horizontal & vertical sub-sampling (2:1 & 4:2) Pro

LM9618 General Description

The LM9618 is a high performance, low power, 1/3” VGA CMOS Active Pixel Sensor capable of capturing grey-scale digital still or motion images and converting them to a digital data stream. In addition to the active pixel array, an on-chip 12 bit A/D convertor, fixed pattern noise elimination circuits.

LM9618 Datasheet (1.65 MB)

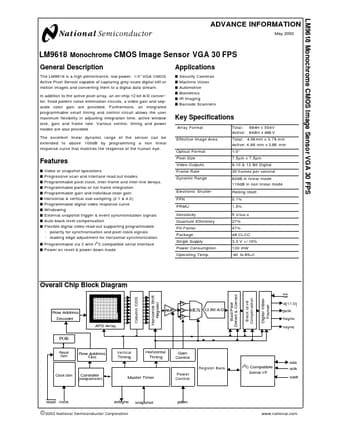

Preview of LM9618 PDF

Datasheet Details

Part number:

LM9618

Manufacturer:

National Semiconductor

File Size:

1.65 MB

Description:

Monochrome cmos image sensor.
