LM96530 Ultrasound Transmit/Receive Switch

LM96530 Description

LM96530 PRODUCT BRIEF LM96530 PRODUCT BRIEF Ultrasound Transmit/Receive Switch General .
The LM96530 is an eight-channel monolithic high-voltage, high-speed T/R (Transmit/Receive) switch for multi-channel medical ultrasound applications.

LM96530 Features

* include a diode bridge with internal current sources that are programmable via an external resistor. Low-power operation is enabled via per-channel-selectable switching. National Semiconductor also offers a development package for sale which includes a driver hardware and software package with a gra

LM96530 Applications

* It is well-suited for use with National’s LM965XX series chipset which offers a complete medical ultrasound solution targeted towards low-power, portable systems. The LM96530 contains eight high-voltage T/R switches with integrated clamping diodes. This chip protects the inputs of the receive chann

📥 Download Datasheet

Preview of LM96530 PDF

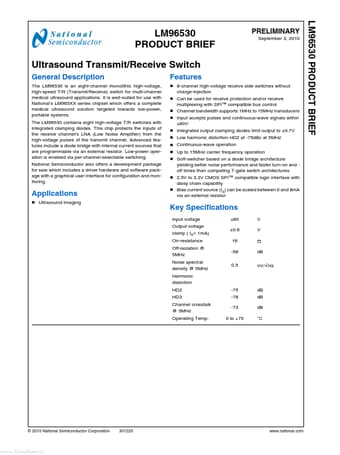

datasheet Preview Page 2 datasheet Preview Page 3
