MM54HC133

13-Input NAND Gate

MM54HC133 Features

* Y Typical propagation delay 20 ns Y Wide power supply range 2

* 6V Y Low quiescent current 20 mA maximum (74HC Series) Y Low input current 1 mA maximum Y Fanout of 10 LS-TTL loads Connection and Logic Diagrams Dual-In-Line Package Top View Order Number MM54HC133 or MM74HC133 TL F 5134

MM54HC133 General Description

This NAND gate utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits All gates have buffered outputs All devices have high noise immunity and the ability to drive 10 LS-TTL loads The 54HC.

MM54HC133 Datasheet (127.46 KB)

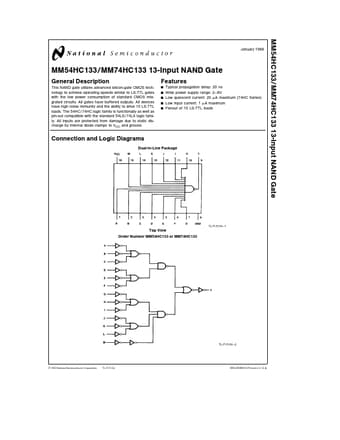

Preview of MM54HC133 PDF

Datasheet Details

Part number:

MM54HC133

Manufacturer:

National Semiconductor

File Size:

127.46 KB

Description:

13-input nand gate.
