DP7310 - Octal Latched Peripheral Drivers

Datasheet Summary

Description

The DP7310 8310 DP7311 8311 Octal Latched Peripheral Drivers provide the function of latching eight bits of data with open collector outputs each driving up to 100 mA DC with an operating voltage range of 30V Both devices are designed for low input currents high input output voltages and feature a p

Features

Y Y Y Y High current high voltage open collector outputs Low current high voltage inputs High current high voltage drivers Relay drivers Lamp drivers LED drivers TRIAC drivers Solenoid drivers Stepper motor drivers Level translators Fiber-optic LED drivers Connection Diagrams Dual-In-Line Package Dual-In-Line Package TL F 5246.
1 TL F 5246.
2 Top View Order Number DP7310J DP7311J DP8310N or DP8311N See NS Package Number J20A or N20A Top View C1995 National Semiconducto.

Datasheet Details

Part number	DP7310
Manufacturer	National
File Size	170.22 KB
Description	Octal Latched Peripheral Drivers
Datasheet	DP7310 Datasheet

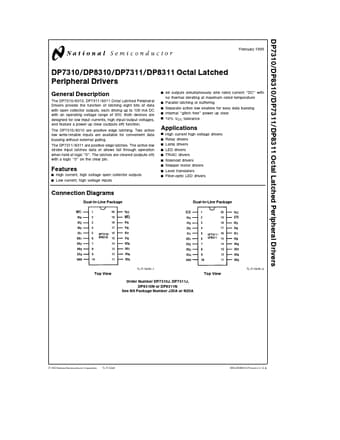

Additional preview pages of the DP7310 datasheet.

📁 Similar Datasheet

DP7311 - Octal Latched Peripheral Drivers (National Semiconductor)

DP720FHDI - TFT LCD (Dopoint)

DP7241 - Quad Digital Potentiometer (COPAL ELECTRONICS)

DP7251 - Quad Digital Potentiometer (COPAL ELECTRONICS)

DP7259 - Quad Digital Potentiometer (COPAL ELECTRONICS)

DP7261 - Dual Digital Potentiometers (COPAL ELECTRONICS)

DP7269 - Dual Digital Potentiometers (COPAL ELECTRONICS)

DP7298 - LED display controller (DP)

DP7401 - Quad Digital Potentiometer (COPAL ELECTRONICS)

DP7409 - Quad Digital Potentiometer (COPAL ELECTRONICS)

Full PDF Text Transcription

Click to expand full text

DP7310 DP8310 DP7311 DP8311 Octal Latched Peripheral Drivers February 1995 DP7310 DP8310 DP7311 DP8311 Octal Latched Peripheral Drivers General Description The DP7310 8310 DP7311 8311 Octal Latched Peripheral Drivers provide the function of latching eight bits of data with open collector outputs each driving up to 100 mA DC with an operating voltage range of 30V Both devices are designed for low input currents high input output voltages and feature a power up clear (outputs off) function The DP7310 8310 are positive edge latching Two active low write enable inputs are available for convenient data bussing without external gating The DP7311 8311 are positive edge latches The active low strobe input latches data or allows fall through operation when held at logic ‘‘0’’ The latches are clea
