DP7251 - Quad Digital Potentiometer

Datasheet Summary

Description

The DP7251 is four Digital Potentiometers (DPs) integrated with control logic and 16 bytes of NVRAM memory.

Each DP consists of a series of resistive elements connected between two externally accessible end points.

Features

  • Four linear-taper digital potentiometers 254 resistor taps per potentiometer End to end resistance 50kŸ or 100kŸ Potentiometer control and memory access via SPI interface Low wiper resistance, typically 100Ÿ Nonvolatile memory storage for up to four wiper settings for each potentiometer Automatic recall of saved wiper settings at power up 2.5 to 6.0 volt operation Standby current less than 1µA 1,000,000 nonvolatile WRITE cycles 100 year nonvolatile memory data retention SOIC 24-lead and TSSOP 24.

📥 Download Datasheet

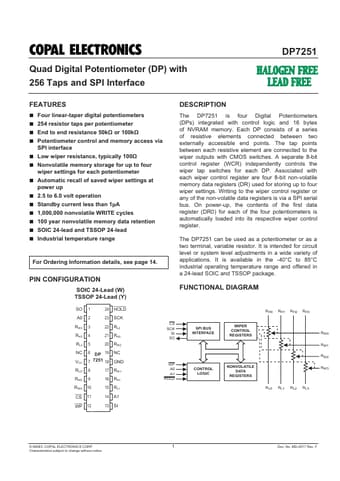

Datasheet preview – DP7251

Datasheet Details

Part number DP7251
Manufacturer COPAL ELECTRONICS
File Size 158.76 KB
Description Quad Digital Potentiometer
Datasheet download datasheet DP7251 Datasheet
Additional preview pages of the DP7251 datasheet.

📁 Similar Datasheet

  • DP720FHDI - TFT LCD (Dopoint)
  • DP7298 - LED display controller (DP)
  • DP7304B - 8-BIT TRI-STATE BIDIRECTIONAL TRANSCEIVER (National)
  • DP7308 - 8 Bit 3 State Bidirectional Transceivers (National)
  • DP7310 - Octal Latched Peripheral Drivers (National)
  • DP7311 - Octal Latched Peripheral Drivers (National Semiconductor)
  • DP7500 - PWM Power Control Circuitry (DEVELOPER MICROELECTRONICS)
Other Datasheets by COPAL ELECTRONICS
  • DP7259 - Quad Digital Potentiometer
  • DP7241 - Quad Digital Potentiometer
  • DP7261 - Dual Digital Potentiometers
  • DP7269 - Dual Digital Potentiometers
  • DP7401 - Quad Digital Potentiometer
  • DP7409 - Quad Digital Potentiometer
  • DP7411 - Dual Digital Potentiometers
  • DP7419 - Dual Digital Potentiometers

Full PDF Text Transcription

Click to expand full text
Quad Digital Potentiometer (DP) with 256 Taps and SPI Interface DP7251 FEATURES Four linear-taper digital potentiometers 254 resistor taps per potentiometer End to end resistance 50kŸ or 100kŸ Potentiometer control and memory access via SPI interface Low wiper resistance, typically 100Ÿ Nonvolatile memory storage for up to four wiper settings for each potentiometer Automatic recall of saved wiper settings at power up 2.5 to 6.0 volt operation Standby current less than 1µA 1,000,000 nonvolatile WRITE cycles 100 year nonvolatile memory data retention SOIC 24-lead and TSSOP 24-lead Industrial temperature range For Ordering Information details, see page 14.
