DP7401

Quad Digital Potentiometer

DP7401 Features

* Four linear taper digital potentiometers 64 resistor taps per potentiometer End to end resistance 2.5kŸ, 10kŸ, 50kŸ or 100kŸ Potentiometer control and memory access via SPI interface: Mode (0, 0) and (1, 1) Low wiper resistance, typically 80Ÿ Nonvolatile memory storage for up to four wiper settings

DP7401 General Description

The DP7401 is four Digital Potentiometers (DPs) integrated with control logic and 16 bytes of NVRAM memory. Each DP consists of a series of 63 resistive elements connected between two externally accessible end points. The tap points between each resistive element are connected to t.

DP7401 Datasheet (154.39 KB)

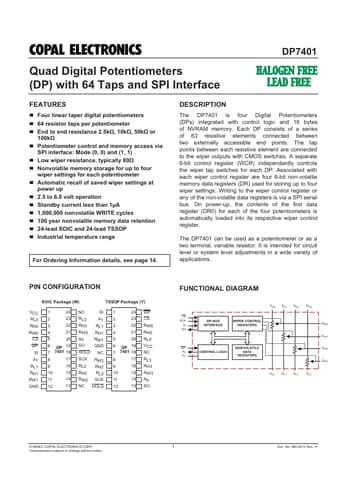

Preview of DP7401 PDF

Datasheet Details

Part number:

DP7401

Manufacturer:

COPAL ELECTRONICS

File Size:

154.39 KB

Description:

Quad digital potentiometer.
