DP7241 - Quad Digital Potentiometer

Datasheet Summary

Description

The DP7241 is four Digital Potentiometers (DPs) integrated with control logic and 16 bytes of NVRAM memory.

Each DP consists of a series of 63 resistive elements connected between two externally accessible end points.

Features

  • Four linear-taper digital potentiometers 64 resistor taps per potentiometer End to end resistance 2.5kŸ, 10kŸ, 50kŸ or 100kŸ Potentiometer control and memory access via 2-wire interface (I2C like) Low wiper resistance, typically 80W Nonvolatile memory storage for up to four wiper settings for each potentiometer Automatic recall of saved wiper settings at power up 2.5 to 6.0 volt operation Standby current less than 1µA 1,000,000 nonvolatile WRITE cycles 100 year nonvolatile memory data retention.

📥 Download Datasheet

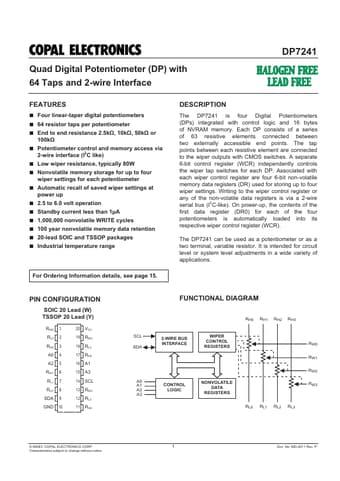

Datasheet preview – DP7241

Datasheet Details

Part number DP7241
Manufacturer COPAL ELECTRONICS
File Size 164.10 KB
Description Quad Digital Potentiometer
Datasheet download datasheet DP7241 Datasheet
Additional preview pages of the DP7241 datasheet.

📁 Similar Datasheet

  • DP720FHDI - TFT LCD (Dopoint)
  • DP7298 - LED display controller (DP)
  • DP7304B - 8-BIT TRI-STATE BIDIRECTIONAL TRANSCEIVER (National)
  • DP7308 - 8 Bit 3 State Bidirectional Transceivers (National)
  • DP7310 - Octal Latched Peripheral Drivers (National)
  • DP7311 - Octal Latched Peripheral Drivers (National Semiconductor)
  • DP7500 - PWM Power Control Circuitry (DEVELOPER MICROELECTRONICS)
Other Datasheets by COPAL ELECTRONICS
  • DP7251 - Quad Digital Potentiometer
  • DP7259 - Quad Digital Potentiometer
  • DP7261 - Dual Digital Potentiometers
  • DP7269 - Dual Digital Potentiometers
  • DP7401 - Quad Digital Potentiometer
  • DP7409 - Quad Digital Potentiometer
  • DP7411 - Dual Digital Potentiometers
  • DP7419 - Dual Digital Potentiometers

Full PDF Text Transcription

Click to expand full text
Quad Digital Potentiometer (DP) with 64 Taps and 2-wire Interface DP7241 FEATURES Four linear-taper digital potentiometers 64 resistor taps per potentiometer End to end resistance 2.5kŸ, 10kŸ, 50kŸ or 100kŸ Potentiometer control and memory access via 2-wire interface (I2C like) Low wiper resistance, typically 80W Nonvolatile memory storage for up to four wiper settings for each potentiometer Automatic recall of saved wiper settings at power up 2.5 to 6.0 volt operation Standby current less than 1µA 1,000,000 nonvolatile WRITE cycles 100 year nonvolatile memory data retention 20-lead SOIC and TSSOP packages Industrial temperature range For Ordering Information details, see page 15.
