DP7259

Quad Digital Potentiometer

DP7259 Features

* Four linear taper digital potentiometers 256 resistor taps per potentiometer End to end resistance 50kŸ or 100kŸ Potentiometer control and memory access via 2-wire interface (I2C like) Low wiper resistance, typically 100Ÿ Nonvolatile memory storage for up to four wiper settings for each potentiomete

DP7259 General Description

The DP7259 is four digital potentiometers (DPs) integrated with control logic and 16 bytes of NVRAM memory. Each DP consists of a series of resistive elements connected between two externally accessible end points. The tap points between each resistive element are connected to the wiper outp.

DP7259 Datasheet (164.69 KB)

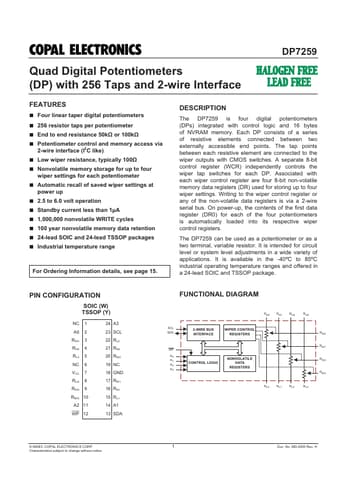

Preview of DP7259 PDF

Datasheet Details

Part number:

DP7259

Manufacturer:

COPAL ELECTRONICS

File Size:

164.69 KB

Description:

Quad digital potentiometer.
