MM74C927

4-Digit Counters with Multiplexed 7-Segment Output Drivers

MM74C927 Features

* Y Y Y Y Wide supply voltage range Guaranteed noise margin High noise immunity High segment sourcing current Internal multiplexing circuitry 3V to 6V 1V 0 45 VCC (typ ) 40 mA VCC b 1 6V VCC e 5V Y Design Considerations Segment resistors are desirable to minimize power dissipation and chip heating

MM74C927 General Description

These CMOS counters consist of a 4-digit counter an internal output latch NPN output sourcing drivers for a 7-segment display and an internal multiplexing circuitry with four multiplexing outputs The multiplexing circuit has its own free-running oscillator and requires no external clock The counters.

MM74C927 Datasheet (204.58 KB)

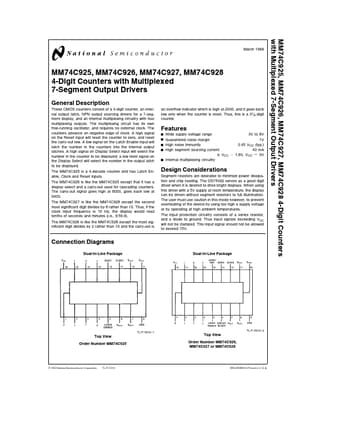

Preview of MM74C927 PDF

Datasheet Details

Part number:

MM74C927

Manufacturer:

National

File Size:

204.58 KB

Description:

4-digit counters with multiplexed 7-segment output drivers.
