MUSES72320

2-Channel Electronic Volume

New Japan Radio

MUSES72320 Features

* Operating Voltage ±8.5 to ±18V

* 3-Wired Serial Control Chip Address Select Function

* Selectable 8-Chip Address Available for using eight chips on same serial bus line

* Low Output Noise

* It conforms to the characteristic of an external operational amplifier.

* Lo

MUSES72320 General Description

The MUSES72320 is a ±18V operation 2-channel electronic volume, which is optimized for high-end audio and professional audio applications with advanced circuitry and layout. The MUSES72320 performs low noise and low distortion characteristics and with resistance ladder circuit. All of functions are .

MUSES72320 Datasheet (691.03 KB)

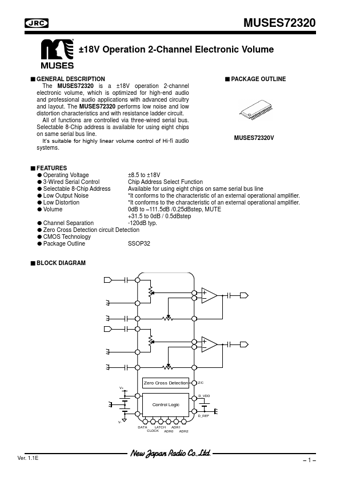

MUSES72320 Datasheet Preview — Preview of MUSES72320 PDF

Datasheet Details

Part number:

MUSES72320

Manufacturer:

New Japan Radio

File Size:

691.03 KB

Description:

2-channel electronic volume.
