MUSES05 - Single Operational Amplifier

MUSES05 Description

Datasheet MUSES05 High-Quality Sound, J-FET Input, Single Operational Amplifier for Premium Audio .
The MUSES05 is a high-quality sound J-FET input single operational amplifier for premium audio equipment.

MUSES05 Features

* (V+/ V
* = ±15V, Typical value, Ta = 25°C)
* High-quality Sound
* Low Input Bias Current 5pA
* Low Noise 7.5nV/√Hz at f=1kHz
* Ultralow Distortion 0.00003% at f=1kHz
* High Slew Rate 40V/µs
* Gain Bandwidth Product 12MHz
* Operating Voltage ±3.5V to ±

MUSES05 Applications

* Home Audio
* Professional Audio
* Portable Audio

📥 Download Datasheet

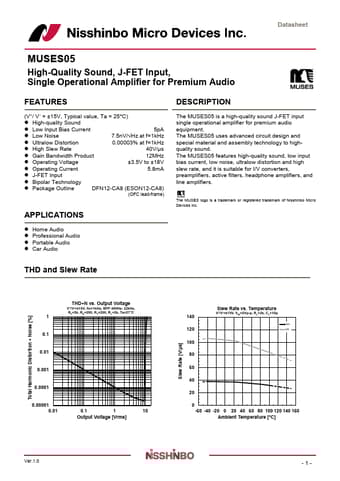

Preview of MUSES05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUSES05
Manufacturer
Nisshinbo
File Size
795.72 KB
Datasheet
MUSES05-Nisshinbo.pdf
Description
Single Operational Amplifier
