MUSES8920

Dual Operational Amplifier

New Japan Radio

MUSES8920 Features

* Operating Voltage

* Low Noise

* THD

* Slew Rate

* Channel Separation

* High Output Current

* Phase Margin

* Input Offset Voltage

* Input Bias Current

* Voltage Gain

* J-FET technology

* Package Outline ±3.5V to ±16V 8nV/√Hz typ. 0.00004% typ. (Av=1) 25V/µs typ.

MUSES8920 General Description

The MUSES8920 is a high quality Audio J-FET input dual operational amplifier. This is a mass production model of MUSES Series. By inheriting MUSES Technology we pursued in the "MUSES series", the MUSES8920 is compatible in high-quality sound and productivity. The MUSES8920 has improved the chip layo.

MUSES8920 Datasheet (323.03 KB)

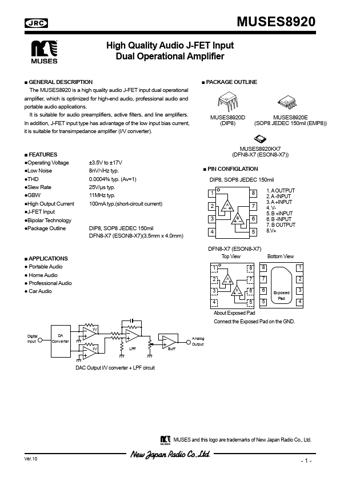

MUSES8920 Datasheet Preview — Preview of MUSES8920 PDF

Datasheet Details

Part number:

MUSES8920

Manufacturer:

New Japan Radio

File Size:

323.03 KB

Description:

Dual operational amplifier.
