NJU6532 Datasheet, Driver, New Japan Radio

NJU6532 Features

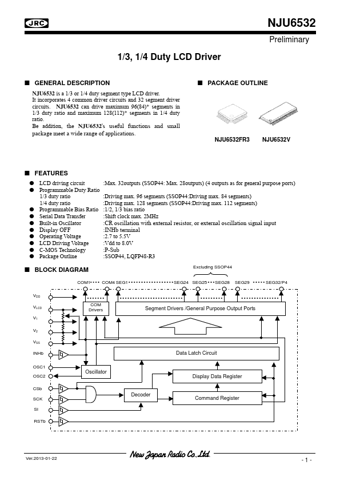

• Driver LCD driving circuit :Max. 32outputs (SSOP44: Max. 28outputs) (4 outputs as for general purpose ports) Programmable Duty Ratio 1/3 duty ratio :Driving max. 96 segments (SSOP44:Drivi

PDF File Details

Part number:

NJU6532

Manufacturer:

New Japan Radio

File Size:

204.26kb

Download:

📄 Datasheet

Description:

Lcd driver. NJU6532 is a 1/3 or 1/4 duty segment type LCD driver. It incorporates 4 common driver circuits and 32 segment driver circuits. NJU653

NJU6532 Application

• Applications PACKAGE OUTLINE NJU6532FR3 NJU6532V FEATURES LCD driving circuit :Max. 32outputs (SSOP44: Max. 28outputs) (4 outputs as for genera
