PDMB100A6, IGBT

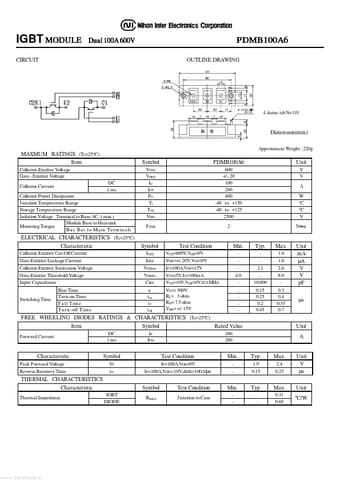

IGBT MODULE CIRCUIT Dual 100A 600V PDMB100A6 OUTLINE DRAWING 4- fasten- tab No 110 Dimension(mm) Approximate Weight : 220g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR PDMB100A6 600 +/ - 20 100 200 400 -40 to +150 -40 to +125 2500 2 Unit V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isolation Voltage Terminal to Base AC,
