TCU10A30 Datasheet - Nihon Inter Electronics

TCU10A30 FRED

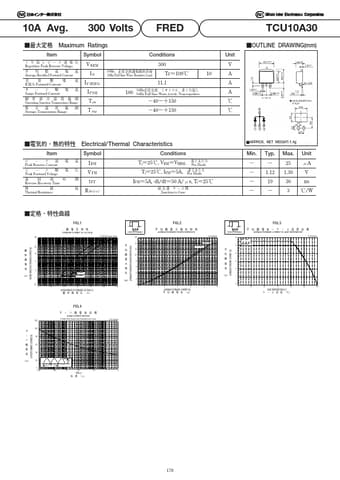

10A Avg. 300 Volts FRED TCU10A30 INSTANTANEOUS FORWARD CURRENT (A) 50 20 10 5 2 1 0.5 0 FORWARD CURRENT VS. VOLTAGE TCU10A30 (per Arm) Tj=25°C Tj=150°C 0.4 0.8 1.2 1.6 INSTANTANEOUS FORWARD VOLTAGE (V) 2.0 3.5 AVERAGE FORWARD POWER DISSIPATION (W) 0° 180° θ CONDUCTION ANGLE 16 14 12 10 8 6 4 2 0 0 AVERAGE FORWARD POWER DISSIPATION TCU10A30 RECT 180° SINE WAVE 123456 AVERAGE FORWARD CURRENT (A) 0° 180° θ CONDUCTION ANGLE 6 RECT 180° 5 SINE WAVE AVERAGE FORWARD CURRENT VS. CASE TE.

TCU10A30-NihonInterElectronics.pdf

TCU10A30 Datasheet Preview — Preview of TCU10A30 PDF

Datasheet Details

Part number:

TCU10A30

Manufacturer:

Nihon Inter Electronics

File Size:

126.37 KB

Description:

Fred.
