TCUT1200

Subminiature Dual Channel Optical Sensor

TCUT1200 Features

* D Dual channel with 0.3 mm aperture D Channel 1 to channel 2 distance 0.8 mm (optical center) D Gap 2 mm D Package height: 4 mm D Surface Mountable Technology (SMD) D Parts shipped taped and reeled 2000 pcs/ reel D Soldering method according to CECC00802 table 1, class B or C A Cath Cath 13894 Co

TCUT1200 General Description

This device has a compact construction where the emitting-light source and the detector are located face-to-face on the same optical axes. The operating wavelength is 950 nm. The detector side incorporates 2 phototransistors. Distance of both channels is 0.8 mm. Applications D Accurate position sen.

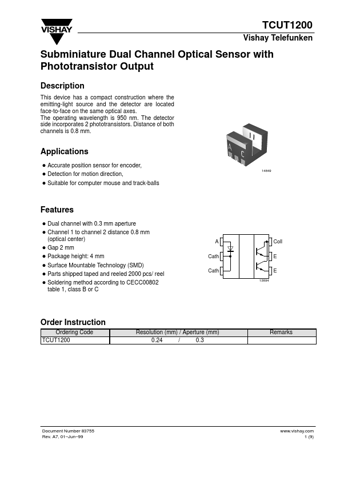

TCUT1200 Datasheet (102.89 KB)

Preview of TCUT1200 PDF

Datasheet Details

Part number:

TCUT1200

Manufacturer:

Vishay ↗ Telefunken

File Size:

102.89 KB

Description:

Subminiature dual channel optical sensor.
