TCUT1630X01 - Triple Channel Transmissive Optical Sensor

Vishay

TCUT1630X01 Datasheet Preview — Preview of TCUT1630X01 PDF

Datasheet Details

Part number	TCUT1630X01
Manufacturer	Vishay ↗
File Size	316.16 KB
Description	Triple Channel Transmissive Optical Sensor
Datasheet	TCUT1630X01-Vishay.pdf

TCUT1630X01 Product details

Description

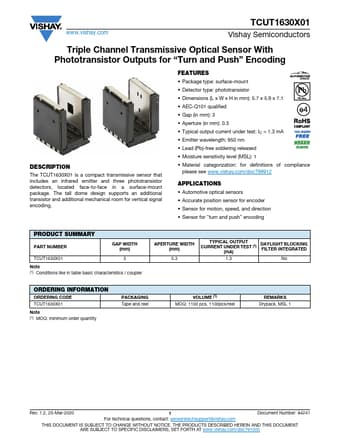

The TCUT1630X01 is a compact transmissive sensor that includes an infrared emitter and three phototransistor detectors, located face-to-face in a surface-mount package.

Features

Package type: surface-mount.
Detector type: phototransistor.
Dimensions (L x W x H in mm): 5.7 x 5.9 x 7.1.
AEC-Q101 qualified.
Gap (in mm): 3.
Aperture (in mm): 0.3.
Typical output current under test: IC = 1.3 mA.
Emitter wavelength: 950 nm.
Lead (Pb)-free soldering released.
Moisture sensitivity level (MSL): 1.
Material categorization: for definitions of compliance please see www. vishay. com/doc?.
