MSM82C59A-2GS - PROGRAMMABLE INTERRUPT CONTROLLER

OKI electronic componets

MSM82C59A-2GS Description

E2O0021-27-X3 ¡ Semiconductor MSM82C59A-2RS/GS/JS ¡ Semiconductor PROGRAMMABLE INTERRUPT CONTROLLER This version: Jan.1998 MSM82C59A-2RS/GS/JS Prev.
The MSM82C59A-2 is a programmable interrupt for use in MSM80C85AH and MSM80C86A10/88A-10 microcomputer systems.

MSM82C59A-2GS Features

* an extremely low standby current of 100mA (max. ) in chip non-selective status. During interrupt control status, the power consumption is very low with only 5 mA (max. ) being required. Internally, the MSM82C59A-2 can control priority interrupts up to 8 levels, and can be expanded up to 64 levels by c

📥 Download Datasheet

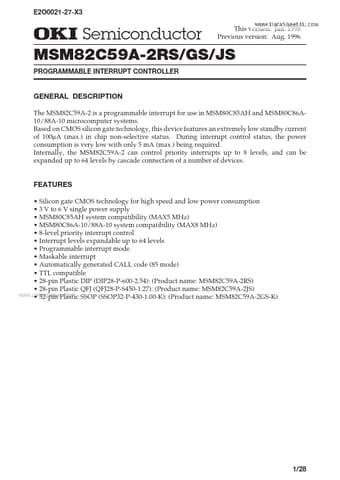

MSM82C59A-2GS Datasheet Preview — Preview of MSM82C59A-2GS PDF

Datasheet Details

Part number: MSM82C59A-2GS
Manufacturer: OKI electronic componets
File Size: 239.00 KB
Datasheet: MSM82C59A-2GS_OKIelectroniccomponets.pdf
Description: PROGRAMMABLE INTERRUPT CONTROLLER
