MSM82C59A-2JS - PROGRAMMABLE INTERRUPT CONTROLLER

Product Overview

OKI electronic componets

📥 Download Datasheet

MSM82C59A-2JS PROGRAMMABLE INTERRUPT CONTROLLER by OKI electronic componets - Datasheet Preview — Datasheet preview – MSM82C59A-2JS

Datasheet Details

Part number	MSM82C59A-2JS
Manufacturer	OKI electronic componets
File Size	239.00 KB
Description	PROGRAMMABLE INTERRUPT CONTROLLER
Datasheet	MSM82C59A-2JS Datasheet
Note	This datasheet PDF includes multiple part numbers: MSM82C59A-2JS, MSM82C59A-2GS. Please refer to the document for exact specifications by model.

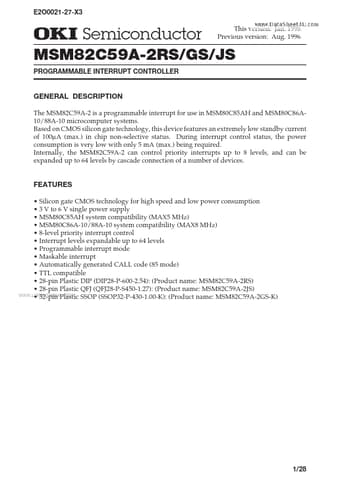

Additional preview pages of the MSM82C59A-2JS datasheet.

Product details

Description

The MSM82C59A-2 is a programmable interrupt for use in MSM80C85AH and MSM80C86A10/88A-10 microcomputer systems.

Features

an extremely low standby current of 100mA (max. ) in chip non-selective status. During interrupt control status, the power consumption is very low with only 5 mA (max. ) being required. Internally, the MSM82C59A-2 can control priority interrupts up to 8 levels, and can be expanded up to 64 levels by cascade connection of a number of devices.
