MSM7507-xx Datasheet, Codec, OKI

MSM7507-xx Features

  • Codec
  • Single power supply: +5 V ± 5%
  • Low power consumption Operating mode: 20 mW Typ. 40 mW Max. VDD = 5 V Power down mode: 0.03 mW Typ. 0.3 mW Max. VDD = 5 V
  • IT

PDF File Details

Part number:

MSM7507-xx

Manufacturer:

OKI

File Size:

139.22kb

Download:

📄 Datasheet

Description:

Single rail codec. The MSM7507 is a single-channel CODEC CMOS IC for voice signals ranging from 300 to 3400 Hz with filters for A/D and D/A conversion.

Datasheet Preview: MSM7507-xx 📥 Download PDF (139.22kb)

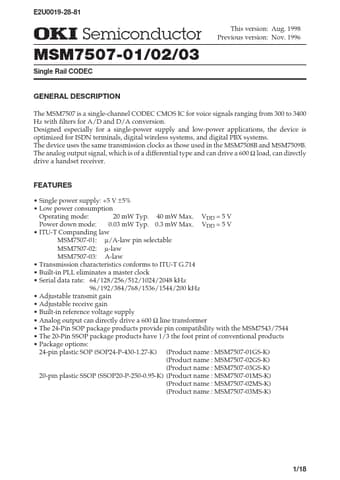

Page 2 of MSM7507-xx Page 3 of MSM7507-xx

MSM7507-xx Application

  • Applications the device is optimized for ISDN terminals, digital wireless systems, and digital PBX systems. The device uses the same transmission c
