MSM7508B - (MSM7509B) Single Rail CODEC

MSM7508B Description

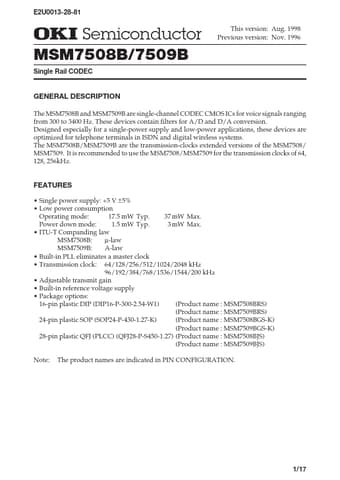

E2U0013-28-81 ¡ Semiconductor MSM7508B/7509B ¡ Semiconductor Single Rail CODEC This version: Aug.1998 MSM7508B/7509B Previous version: Nov.1996 G.
The MSM7508B and MSM7509B are single-channel CODEC CMOS ICs for voice signals ranging from 300 to 3400 Hz.

MSM7508B Features

* Single power supply: +5 V ± 5%
* Low power consumption Operating mode: 17.5 mW Typ. 37 mW Max. Power down mode: 1.5 mW Typ. 3 mW Max.
* ITU-T Companding law MSM7508B: m-law MSM7509B: A-law
* Built-in PLL eliminates a master clock
* Transmission clock: 64/128

📥 Download Datasheet

Preview of MSM7508B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSM7508B
Manufacturer
OKI
File Size
147.80 KB
Datasheet
MSM7508B_OKI.pdf
Description
(MSM7509B) Single Rail CODEC
