MSM7512B

1200 bps Half Duplex FSK Modem - ITU-T V.23

MSM7512B Features

* Conforms to ITU-T V.23, 1200 bps Half Duplex

* Conforms to ITU-T V.23, 75 bps transmitter

* Single Power Supply: +3 V to +5 V

* Low Power Consumption Operating Mode: 25 mW Typ. Power Down Mode: 0.1 mW Max.

* Line Hybrid Circuit on Chip

* Line Direct

MSM7512B General Description

The MSM7512B is useful for the ITU-T V.23 modem, for examples, low cost built-in modems, telecontrol systems, home security systems, etc. The family version, MSM7510 for ITU-T V.21, will be available following this device. Oki has been mass-producing and delivering the MSM6926 and 6927 for a long ti.

MSM7512B Datasheet (111.67 KB)

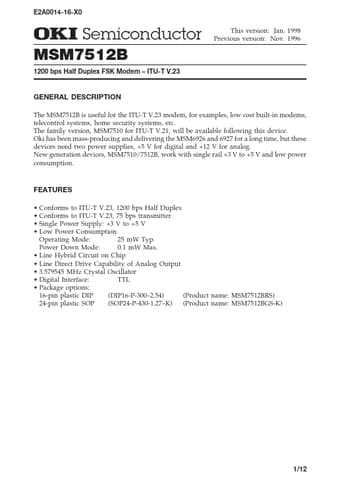

Preview of MSM7512B PDF

Datasheet Details

Part number:

MSM7512B

Manufacturer:

OKI

File Size:

111.67 KB

Description:

1200 bps half duplex fsk modem - itu-t v.23.
E2A0014-16-X0 ยก Semiconductor MSM7512B Semiconductor 1200 bps Half Duplex FSK Modem

* ITU-T V.23 This version: MSM7512B Jan. 1998 Previous v.
