74AC08 - Quad 2-Input AND Gate

Datasheet Summary

Description

The AC08/ACT08 contains four, 2

input AND gates.

Features

  • ICC Reduced by 50% on 74AC Only.
  • Outputs Source/Sink 24 mA 1 A0 2 B0 O0 3 A1 4 5 B1 6 O1 GND 7 14 VCC 13 A2 12 B2 11 O2 10 A3 9 B3 8 O3 Figure 1. Connection Diagram IEEE/IEC A0 & B0 O0 A1 B1 O1 A2 B2 O2 A3 B3 O3 Figure 2. Logic Symbol PIN.

📥 Download Datasheet

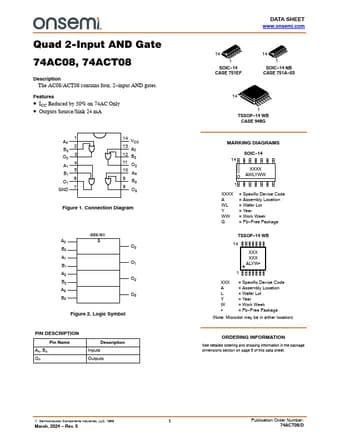

Datasheet preview – 74AC08
