74AC02

QUAD 2-INPUT NOR GATE

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi MC74AC02DR2G IC GATE NOR 4CH 2-INP 14SOIC DigiKey 39732 1000 units
$0.27

74AC02 Datasheet (91.09 KB)

Preview of 74AC02 PDF

Datasheet Details

Part number:

74AC02

Manufacturer:

STMicroelectronics ↗

File Size:

91.09 KB

Description:

Quad 2-input nor gate.

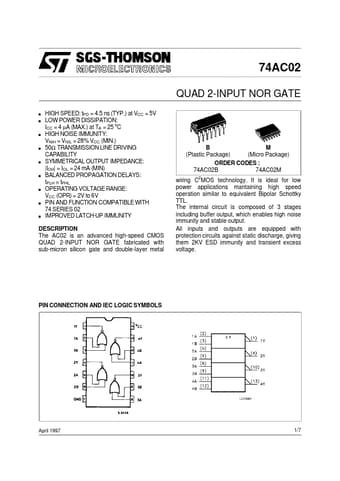

www.DataSheet4U.com 74AC02 QUAD 2-INPUT NOR GATE s s s s s s s s s HIGH SPEED: tPD = 4.5 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION: ICC = 4.

74AC02 General Description

The AC02 is an advanced high-speed CMOS QUAD 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal PIN CONNECTION AND IEC LOGIC SYMBOLS April 1997 1/7 74AC02 INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION PIN No 2, 5, 8, 11 3, 6, 9, 12 1, 4, 10, 12 7 14 SYMBOL 1A t.
