AFGB30T65SQDN IGBT

ON Semiconductor

Description

IGBT for Automotive Applications 650 V, 30 A, D2PAK AFGB30T65SQDN .

📥 Download Datasheet

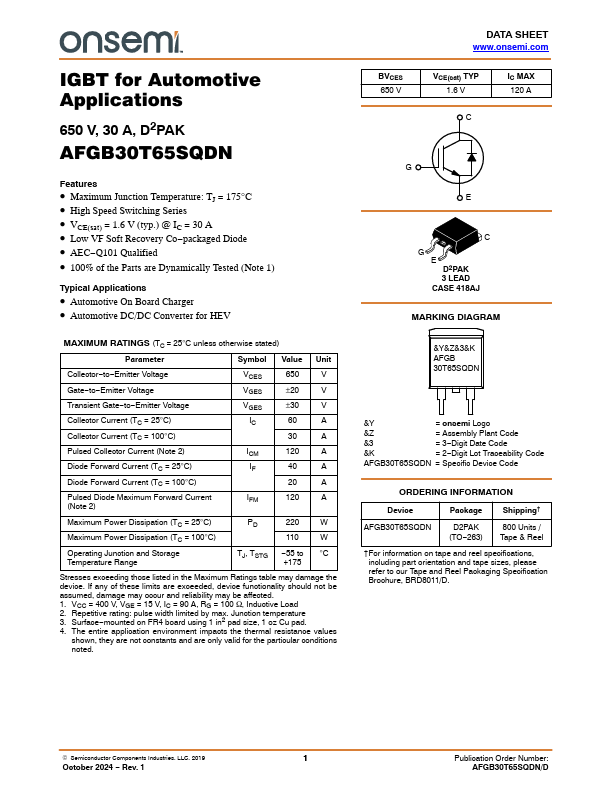

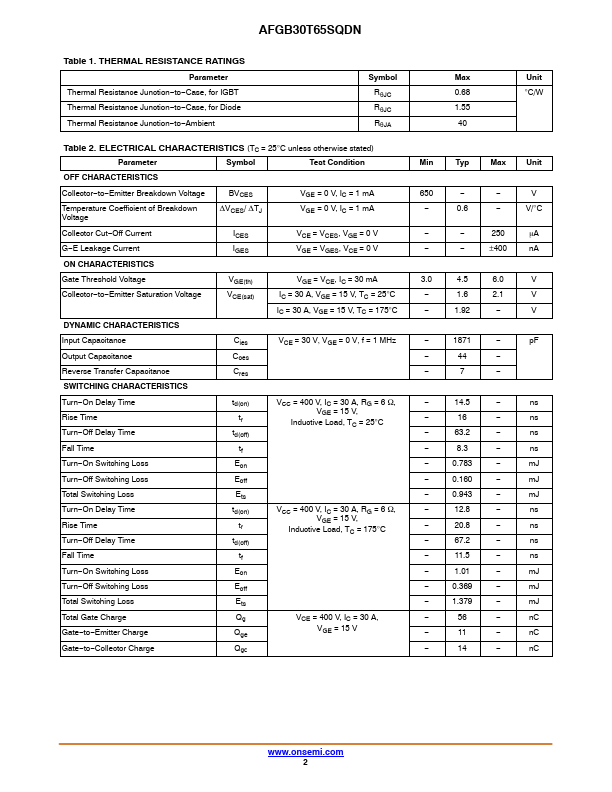

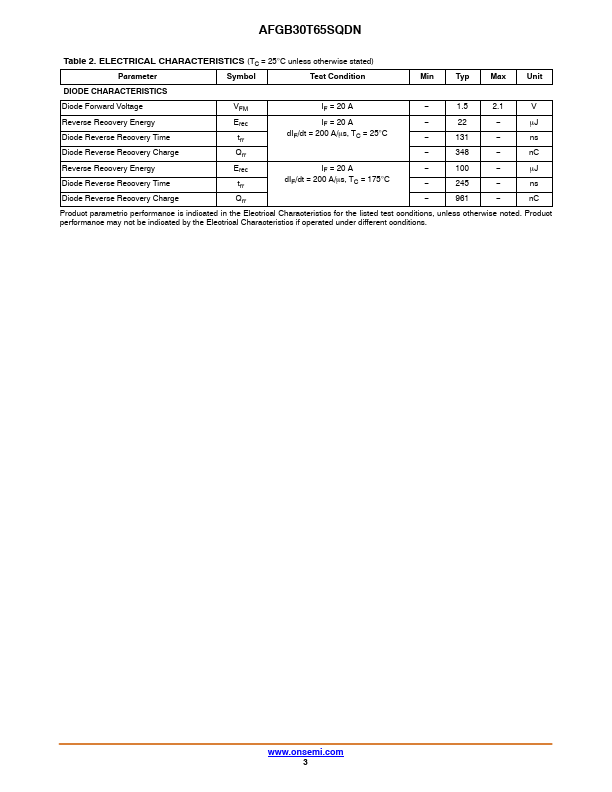

AFGB30T65SQDN Datasheet Preview — Preview of AFGB30T65SQDN PDF

Datasheet Specifications

Part number: AFGB30T65SQDN
Manufacturer: ON Semiconductor ↗
File Size: 226.78 KB
Datasheet: AFGB30T65SQDN-ONSemiconductor.pdf
Description: IGBT

Features

* Maximum Junction Temperature: TJ = 175°C
* High Speed Switching Series
* VCE(sat) = 1.6 V (typ. ) @ IC = 30 A
* Low VF Soft Recovery Co
* packaged Diode
* AEC
* Q101 Qualified
* 100% of the Parts are Dynamically Tested (Note 1) Typical App
