ASM3P2814B Low Power EMI Reduction IC

The ASM3P28XX devices are versatile spread spectrum frequency modulators designed specifically for a wide range of input clock frequencies from 10 MHz to 40 MHz. Refer to Input/Output Frequency Range Selection Table. The ASM3P28XX can generate an EMI reduced clock from crystal, ceramic resonator, or.

ASM3P2814B Features

* FCC Approved Method of EMI Attenuation

* Provides up to 15 dB EMI Reduction

* Generates a 1x, 2x and 4x Low EMI Spread Spectrum Clock of the Input Frequency

* 1x: ASM3P2811A/B

* 2x: ASM3P2812A/B

* 4x: ASM3P2814A/B

* Optimized for Input Freque

ASM3P2811A-ONSemiconductor.pdf

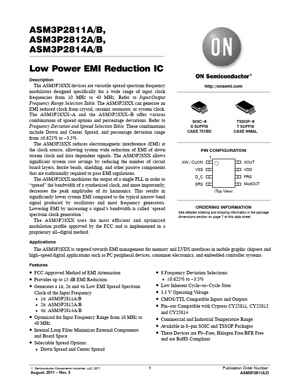

ASM3P2814B Datasheet Preview — This datasheet PDF includes multiple part numbers: ASM3P2814B, ASM3P2811A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ASM3P2814B, ASM3P2811A

Manufacturer:

ON Semiconductor ↗

File Size:

127.44 KB

Description:

Low power emi reduction ic.

Note:

This datasheet PDF includes multiple part numbers: ASM3P2814B, ASM3P2811A.
Please refer to the document for exact specifications by model.
