BDX54C - Plastic Medium-Power Complementary Silicon Transistors

Product Overview

ON Semiconductor

Part number	BDX54C
Manufacturer	ON Semiconductor
File Size	95.97 KB
Description	Plastic Medium-Power Complementary Silicon Transistors
Datasheet	BDX54C Datasheet

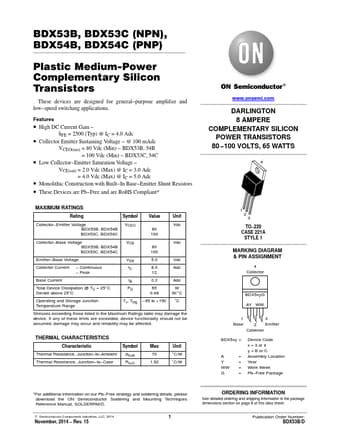

Additional preview pages of the BDX54C datasheet.

High DC Current Gain.
hFE = 2500 (Typ) @ IC = 4.0 Adc.
Collector Emitter Sustaining Voltage.
@ 100 mAdc VCEO(sus) = 80 Vdc (Min).
BDX53B, 54B VCEO(sus) = 100 Vdc (Min).
BDX53C, 54C.
Low Collector.
Emitter Saturation Voltage.
VCE(sat) = 2.0 Vdc (Max) @ IC = 3.0 Adc VCE(sat) = 4.0 Vdc (Max) @ IC = 5.0 Adc.
Monolithic Construction with Built.
In Base.
Emitter Shunt Resistors.
These D.
