BTB12-600CW3G - Triacs Silicon Bidirectional Thyristors

Product Overview

ON Semiconductor

📥 Download Datasheet

BTB12-600CW3G Triacs Silicon Bidirectional Thyristors by ON Semiconductor - Datasheet Preview — Datasheet preview – BTB12-600CW3G

Datasheet Details

Part number	BTB12-600CW3G
Manufacturer	ON Semiconductor
File Size	113.19 KB
Description	Triacs Silicon Bidirectional Thyristors
Datasheet	BTB12-600CW3G Datasheet

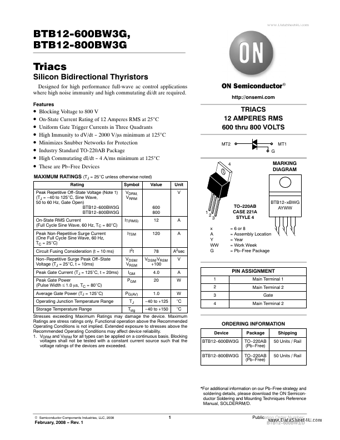

Additional preview pages of the BTB12-600CW3G datasheet.

Product details

Features

http://onsemi. com.
ăBlocking Voltage to 800 V.
ăOn‐State Current Rating of 12 Amperes RMS at 25°C.
ăUniform Gate Trigger Currents in Three Quadrants.
ăHigh Immunity to dV/dt - 2000 V/ms minimum at 125°C.
ăMinimizes Snubber Networks for Protection.
ăIndustry Standard TO‐220AB Package.
ăHigh Commutating dI/dt - 4 A/ms minimum at 125°C.
ăThese are Pb-Free Devices.
