BUL45G - NPN Silicon Power Transistor

Product Overview

ON Semiconductor

📥 Download Datasheet

BUL45G NPN Silicon Power Transistor by ON Semiconductor - Datasheet Preview — Datasheet preview – BUL45G

Datasheet Details

Part number	BUL45G
Manufacturer	ON Semiconductor
File Size	373.12 KB
Description	NPN Silicon Power Transistor
Datasheet	BUL45G Datasheet

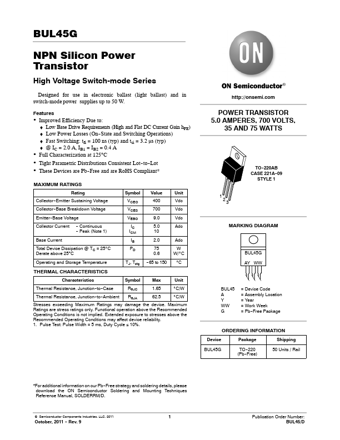

Additional preview pages of the BUL45G datasheet.

Product details

Features

Improved Efficiency Due to:  Low Base Drive Requirements (High and Flat DC Current Gain hFE)  Low Power Losses (On--State and Switching Operations)  Fast Switching: tfi = 100 ns (typ) and tsi = 3.2 ms (typ)  @ IC = 2.0 A, IB1 = IB2 = 0.4 A.
Full Characterization at 125C.
Tight Parametric Distributions Consistent Lot--to--Lot.
These Devices are Pb--Free and are RoHS Compliant.
