BUL45D2 - NPN Transistor

Product Overview

Motorola Inc

Part number	BUL45D2
Manufacturer	Motorola Inc
File Size	444.70 KB
Description	NPN Transistor
Datasheet	BUL45D2 Datasheet

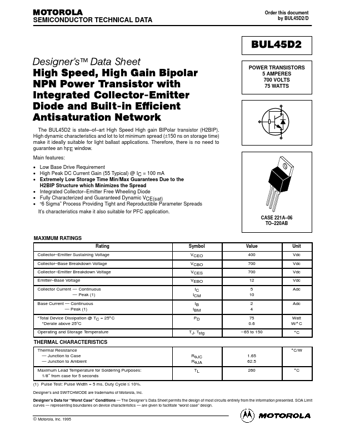

Additional preview pages of the BUL45D2 datasheet.

Low Base Drive Requirement.
High Peak DC Current Gain (55 Typical) @ IC = 100 mA.
Extremely Low Storage Time Min/Max Guarantees Due to the H2BIP Structure which Minimizes the Spread.
Integrated Collector.
Emitter Free Wheeling Diode.
Fully Characterized and Guaranteed Dynamic VCE(sat).
“6 Sigma” Process Providing Tight and Reproductible Parameter Spreads It’s characteristics make it also suitable for PFC.
